Power Outer Mirror Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

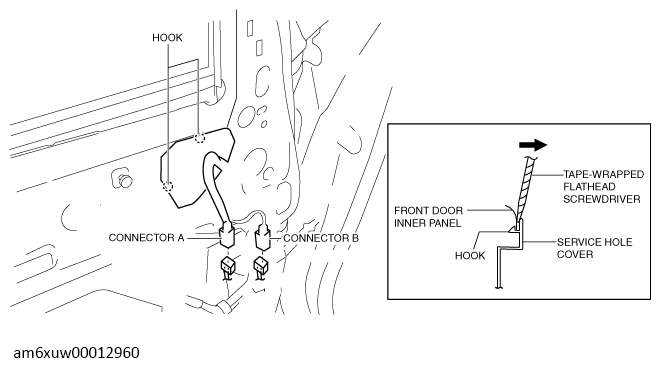

Insert a tape-wrapped flathead screwdriver into the service hole and remove the hooks in the direction of the arrow.

Courtesy of MAZDA MOTORS CORP.
Disconnect connector B. (with connector B)
Disconnect connector A.
Remove the bolts.

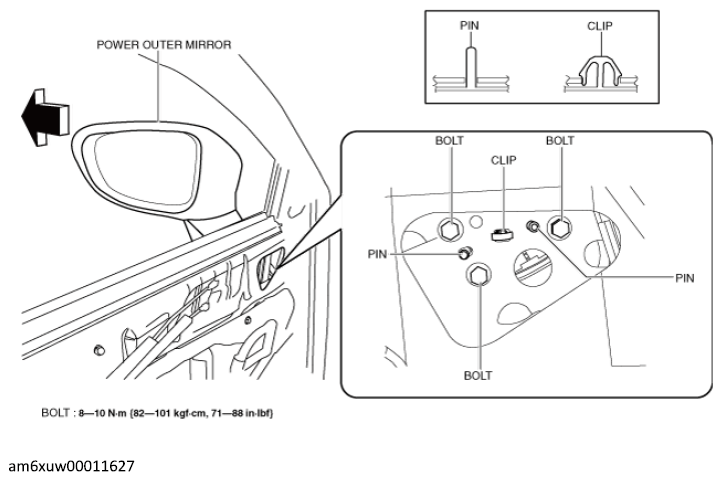

Fig 1: Power Outer Mirror Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Pull the power outer mirror in the direction of the arrow while remove the clips, pins.
CAUTION:
- If clip of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching the clip of the power outer mirror, hold the power outer mirror by hand during the servicing.
Remove the power outer mirror.
Install in the reverse order of removal. (See POWER OUTER MIRROR INSTALLATION NOTE .)
Perform the side camera aiming. (with side camera) (See 360°VIEW MONITOR SYSTEM AIMING .)
