Inspection Using an Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.

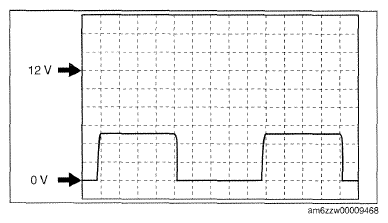

Terminal: 2D, 2F(+) → ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
