Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

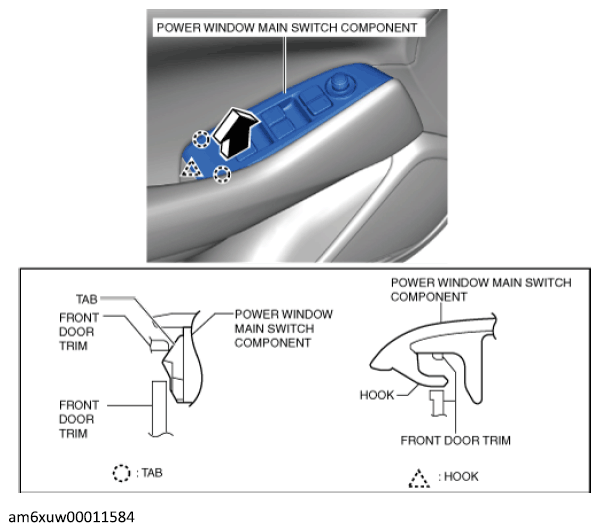

  2. Move the power window main switch component in the direction of the arrow and detach the tabs and hook.
    G12237392Courtesy of MAZDA MOTORS CORP.

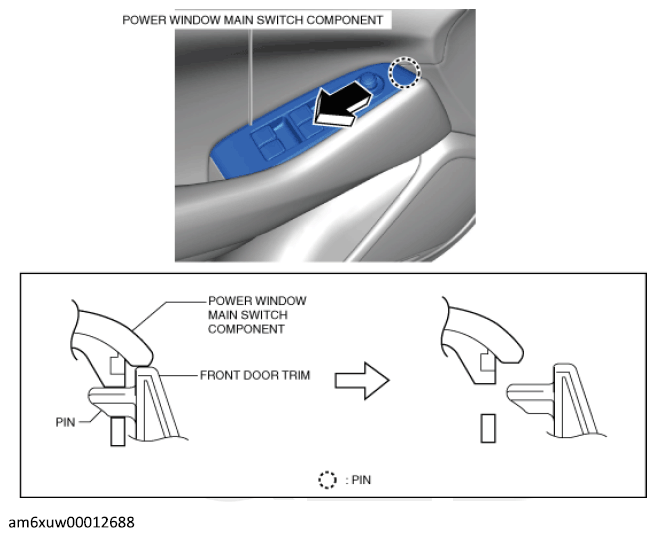

  3. Move the power window main switch component in the direction of the arrow and detach the pin.
    G12237393Courtesy of MAZDA MOTORS CORP.

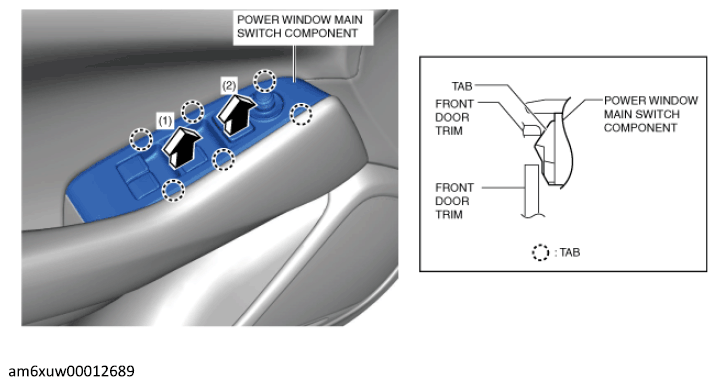

  4. Move the power window main switch component in the direction of arrows (1), (2) and detach the tabs.
    G12237394Courtesy of MAZDA MOTORS CORP.

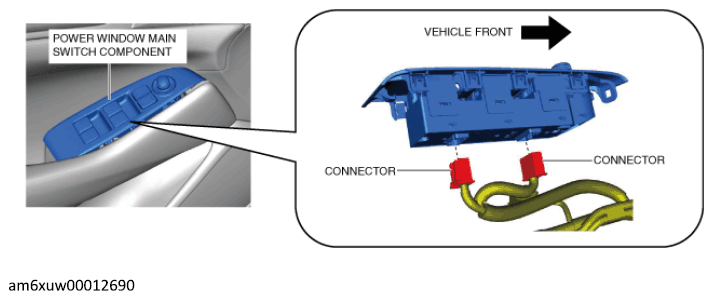

  5. Disconnect the connectors.
    G12237395Courtesy of MAZDA MOTORS CORP.
  6. Remove the power window main switch component from the front door trim.

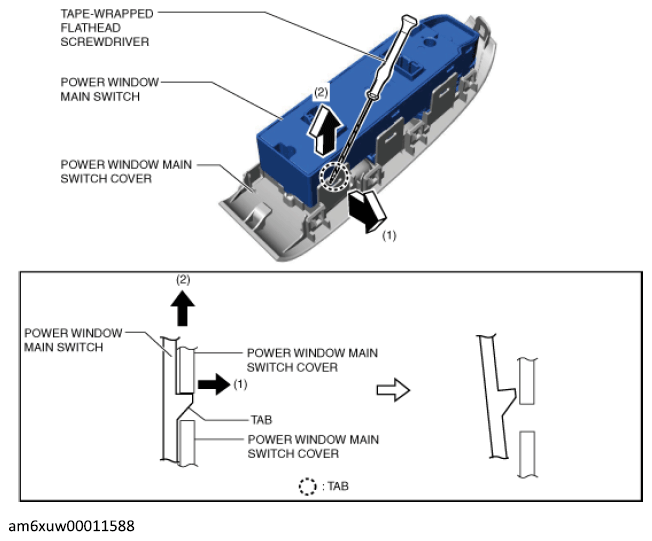

  7. Using a tape-wrapped flathead screwdriver, move the power window main switch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window main switch in the direction of arrow (2).
    G12237396Courtesy of MAZDA MOTORS CORP.

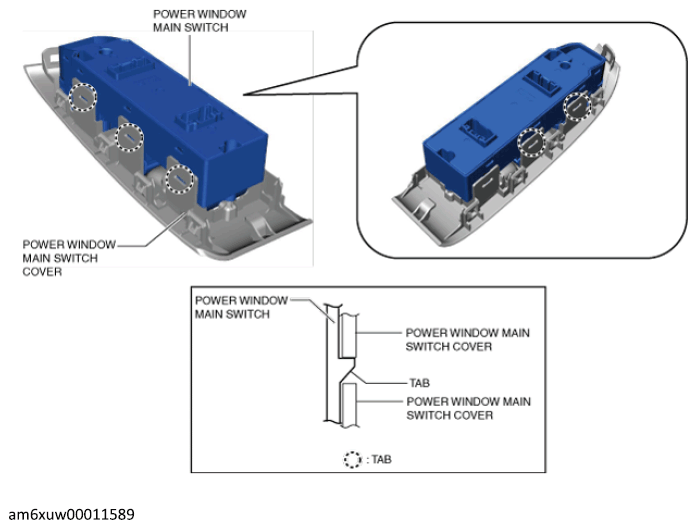

  8. Detach the tabs in the same manner as Step 7.
    G12237397Courtesy of MAZDA MOTORS CORP.
  9. Remove the power window main switch from the power window main switch cover.
  10. Install in the reverse order of removal.
