Rear Power Window Motor
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the rear power window motor connector.

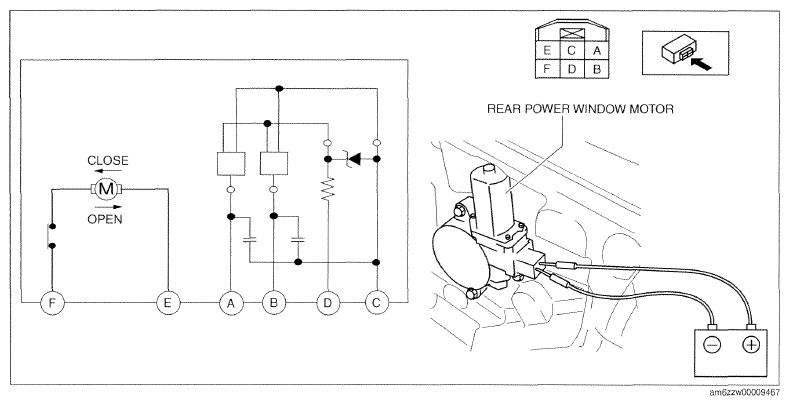

- Apply battery positive voltage and connect the ground to rear power window motor terminals E and F, and then inspect the rear power window motor operation.
- If the rear power window motor does not operate as indicated in the table, replace it.
TERMINAL OPERATION DESCRIPTIONOperation Terminal E F Close B+ Ground Open Ground B+ - Connect the rear power window motor connector.
- Connect the power window subswitch connector. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Operate the rear power window motor and verify the wave patterns for terminals A and B.
- Terminal: A, B(+) → ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
- If the malfunction, replace the rear power window motor.
