Front Power Window Motor

Fully lower the front door glass.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Disconnect the front power window motor connector.

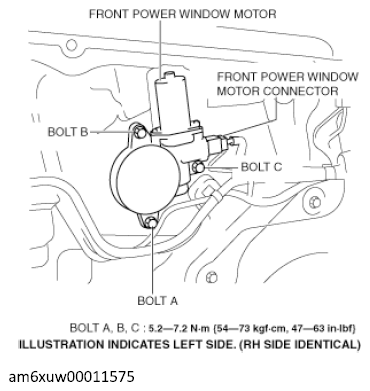

Fig 1: Power Window Motor Bolts A, Bolts B And Bolts C With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove bolt A.
Remove bolt B.
Remove bolt C.
Remove the front power window motor.
Install in the reverse order of removal.

NOTE:

When installing the power window motor to the power window regulator drum, the drum housing tab may come off the door unit. If this happens, remove the front door speaker, insert your hand in the front door speaker installation hole, connect the drum housing tabs, and while supporting the drum housing, install the power window motor to the drum.
