Power Window SUBSWITCH Removal/Installation: Rear

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

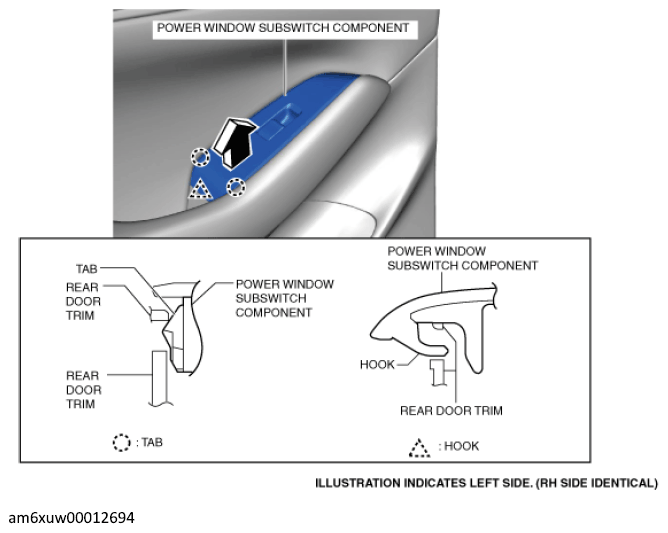

  2. Move the power window subswitch component in the direction of the arrow and detach the tabs and hook.
    G12237412Courtesy of MAZDA MOTORS CORP.

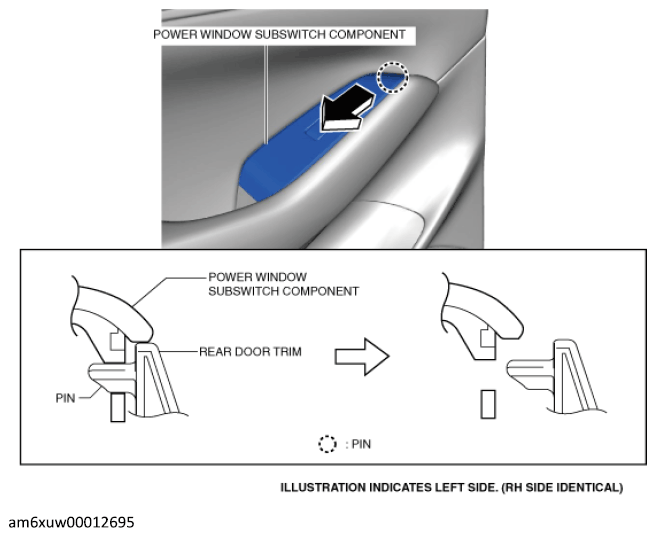

  3. Move the power window subswitch component in the direction of the arrow and detach the pin.
    G12237413Courtesy of MAZDA MOTORS CORP.

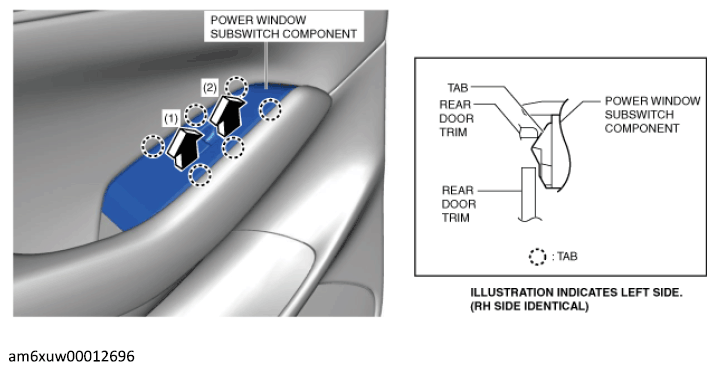

  4. Move the power window subswitch component in the direction of arrows (1), (2) and detach the tabs.
    G12237414Courtesy of MAZDA MOTORS CORP.

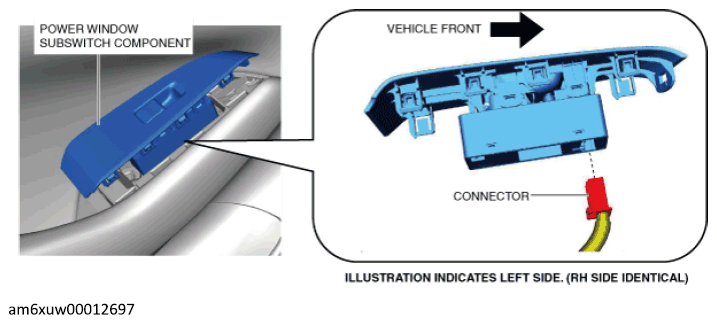

  5. Disconnect the connector.
    G12237415Courtesy of MAZDA MOTORS CORP.
  6. Remove the power window subswitch component from the rear door trim.

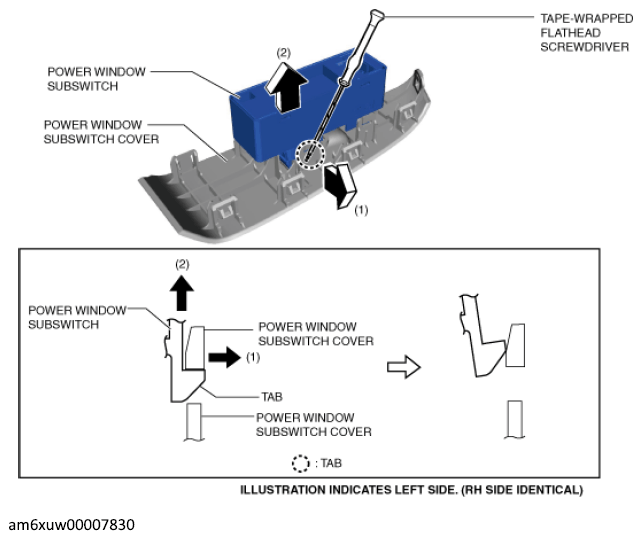

  7. Using a tape-wrapped flathead screwdriver, move the power window subswitch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window subswitch in the direction of arrow (2).
    G12237416Courtesy of MAZDA MOTORS CORP.

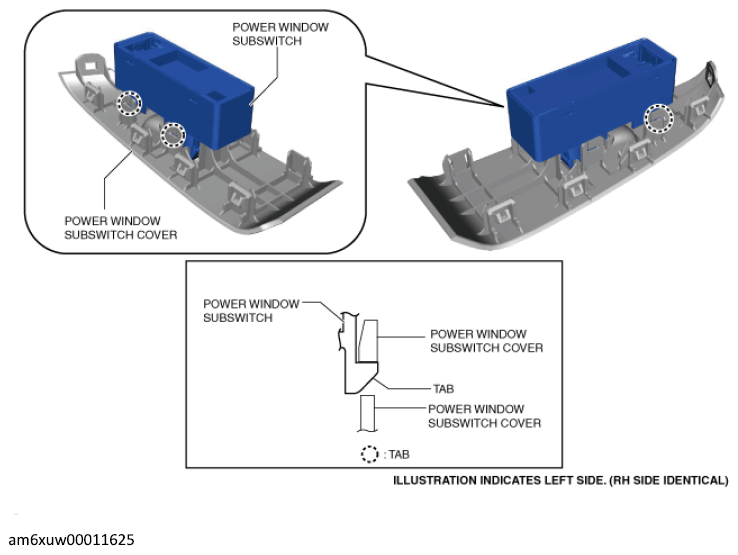

  8. Detach the tabs in the same manner as Step 7.
    G12237417Courtesy of MAZDA MOTORS CORP.
  9. Remove the power window subswitch from the power window subswitch cover.
  10. Install in the reverse order of removal.
