Rear Power Window Regulator Removal/Installation

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    2. Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    3. Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
    5. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)

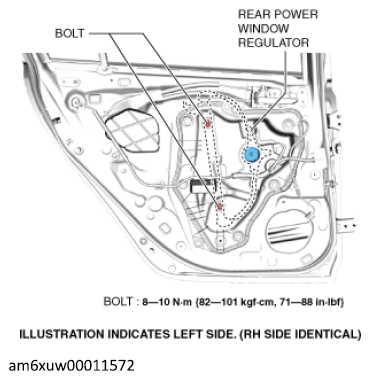

  4. Remove the bolts.
    Fig 1: Rear Power Window Regulator Bolts With Torque Specification
    G12237433Courtesy of MAZDA MOTORS CORP.

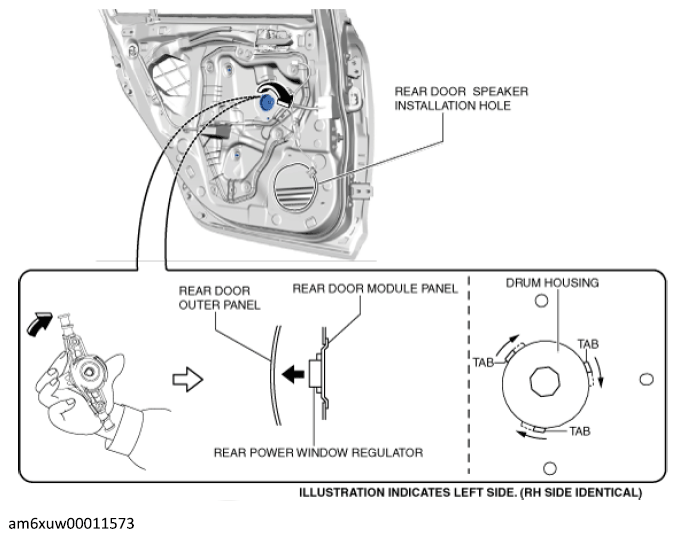

  5. Insert a hand through the rear door speaker installation hole, rotate the drum housing in the direction of the arrow shown in the figure to detach the tabs from the rear door module panel.
    G12237434Courtesy of MAZDA MOTORS CORP.

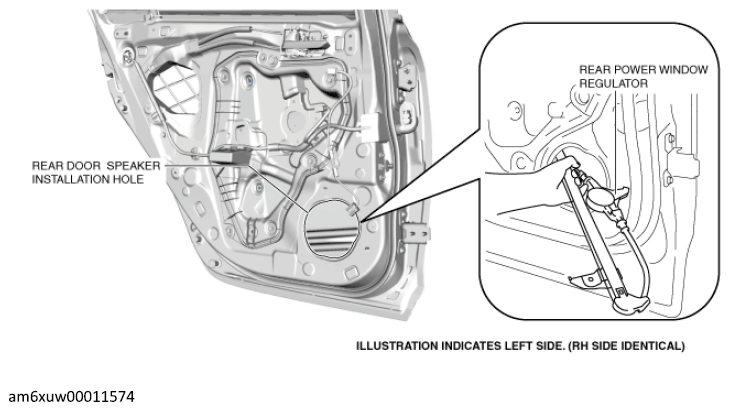

  6. Remove the rear power window regulator through the rear door speaker installation hole.
    CAUTION:
    • When removing the rear power window regulator, the rear power window regulator may contact the rear door speaker installation hole, and the coating film of the rear door inner panel and the rear power window regulator could be damaged. Remove the rear power window regulator while verifying that the rear power window regulator and the rear door speaker installation hole do not contact each other.
    G12237435Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
