Rearview Mirror Removal/Installation

  1. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)
  2. Loosen the screw.

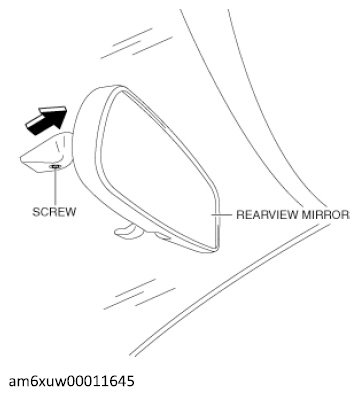

    G12237454Courtesy of MAZDA MOTORS CORP.
  3. Pull the rearview mirror in the direction of the arrow shown in the figure.
  4. Install in the reverse order of removal.
