Sensor Cover Removal/Installation

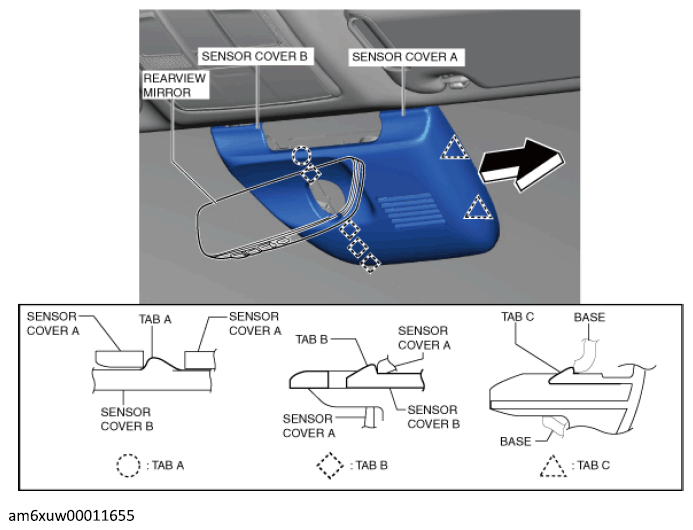

  1. Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and C, and remove sensor cover A from the base.
    G12237455Courtesy of MAZDA MOTORS CORP.

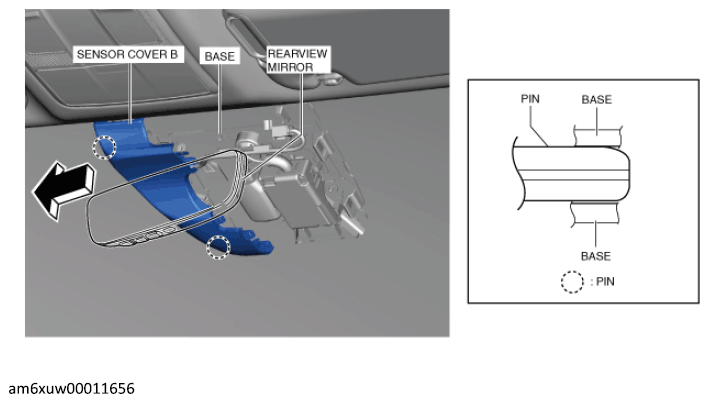

  2. Pull sensor cover B in the direction of the arrow shown in the figure, detach the pins and remove sensor cover B from the base.
    G12237456Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
