Center Accessory Socket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

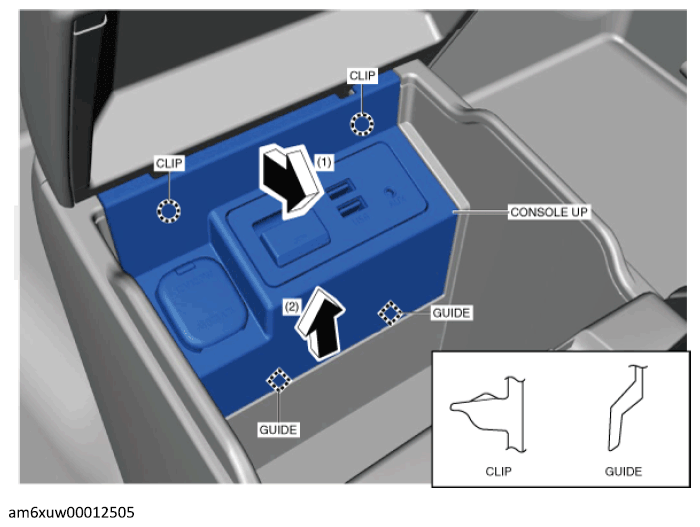

  2. Using a remover tool, move the console up in the order of arrows (1), (2) shown in the figure, and detach the clips and guides.
    G12237475Courtesy of MAZDA MOTORS CORP.

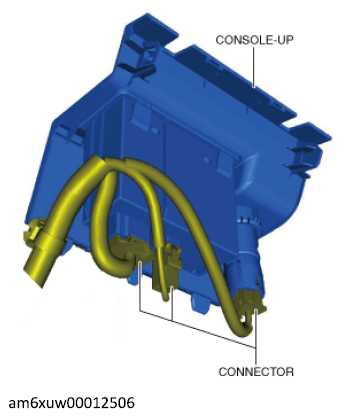

  3. Disconnect the connectors.
    G12237476Courtesy of MAZDA MOTORS CORP.
  4. Remove the console up.

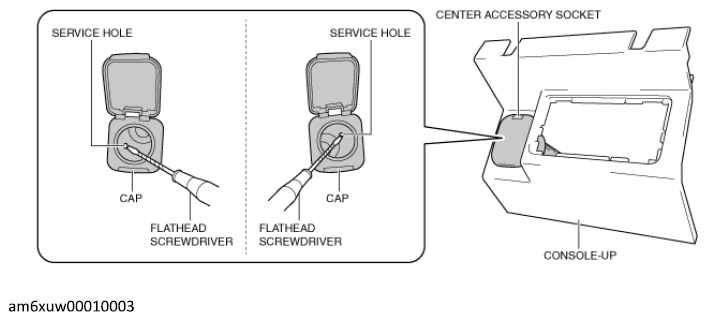

  5. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
    G12237477Courtesy of MAZDA MOTORS CORP.

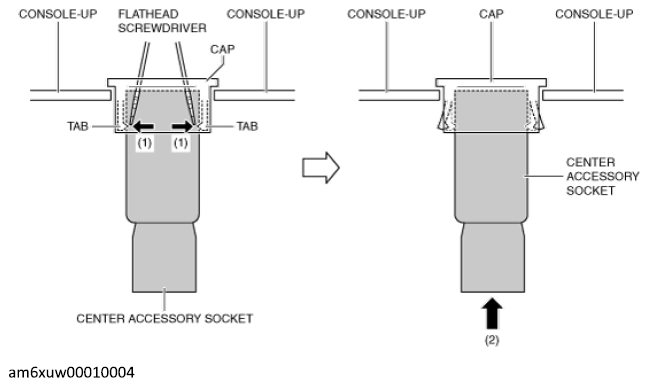

  6. While pressing the cap tab in the direction of arrows (1) shown in the figure, push out the center accessory socket in the direction of arrow (2) to detach the cap tab from the socket.
    G12237478Courtesy of MAZDA MOTORS CORP.

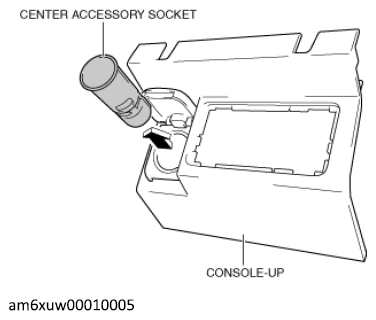

  7. Pull the center accessory socket in the direction of the arrow shown in the figure and remove it.
    G12237479Courtesy of MAZDA MOTORS CORP.

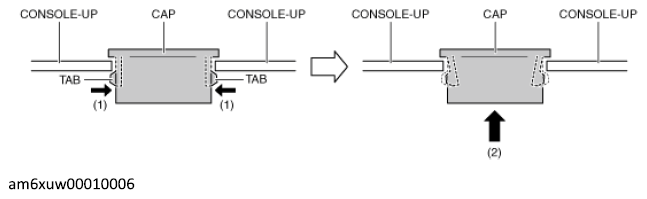

  8. While pressing the cap tabs in the direction of arrows (1) shown in the figure, press the cap in the direction of arrow (2) shown in the figure to detach the cap tabs from the console-up.
    G12237480Courtesy of MAZDA MOTORS CORP.

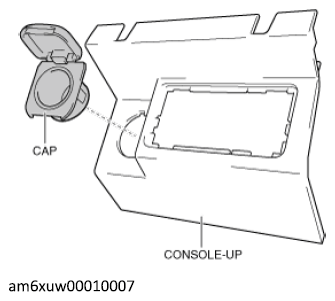

  9. Remove the cap.
    G12237481Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
