Fuse Block Removal/Installation: Installation

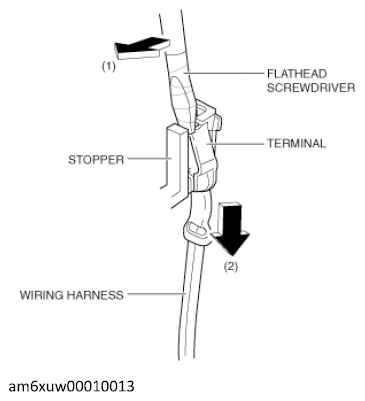

Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the fuse terminal from the stopper.

Courtesy of MAZDA MOTORS CORP.

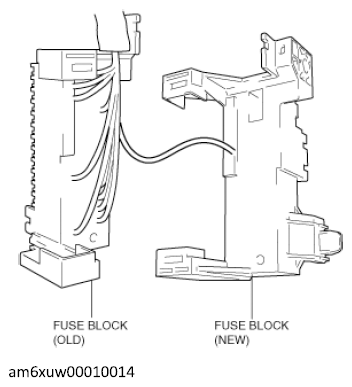

Relocate all fuse terminals to the new fuse block.
CAUTION:
- If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the fuse block, line up the fuse blocks of old and new parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.
Courtesy of MAZDA MOTORS CORP.
- A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.

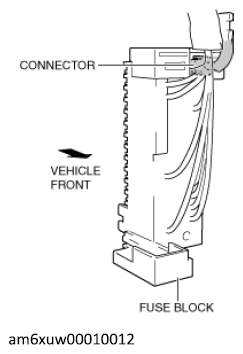

Connect the connector.

Courtesy of MAZDA MOTORS CORP.
Install the fuse block clip to the body.

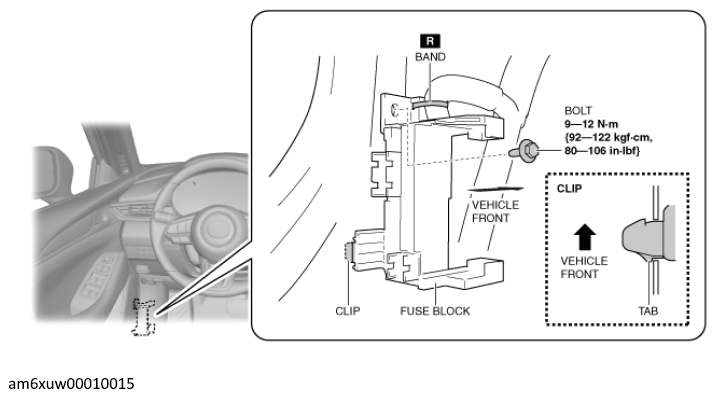

Fig 1: Fuse Block Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the bolt.
Install the band shown in the figure.
Install all the fuses.
Install the following parts:
1. LF control unit (with advanced keyless entry system) (See LF CONTROL UNIT REMOVAL/INSTALLATION .)
2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Perform the "Verify Fuse Block Replacement". (See VERIFY FUSE BLOCK REPLACEMENT .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
