Fuse Block Removal/Installation: Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. LF control unit (with advanced keyless entry system) (See LF CONTROL UNIT REMOVAL/INSTALLATION .)
  3. Remove all the fuses.
  4. Cut the band shown in the figure.

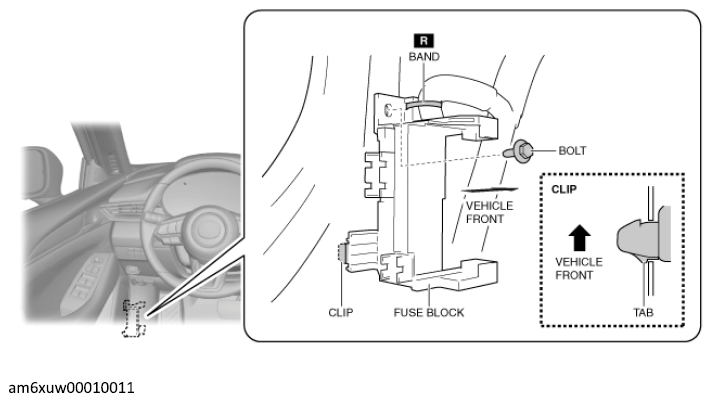

    G12237494Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the fuse block clip from the body.
  7. Disconnect the connector.
    G12237495Courtesy of MAZDA MOTORS CORP.
  8. Set the removed fuse block aside so that it does not scratch the vehicle and parts.
