Relay And Fuse Block Disassembly/Assembly

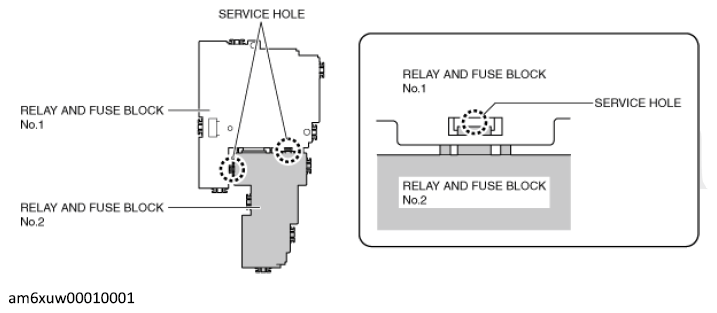

- Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

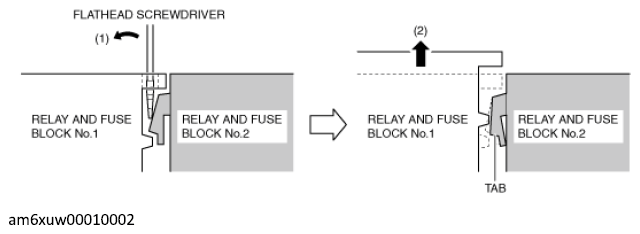

- Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up the relay and fuse block No. 1 in the direction of the arrow (2) shown in the figure to detach the relay and fuse block No. 2 tab from relay and fuse block No. 1.
- Detach all the relay and fuse block No. 2 tabs from relay and fuse block No. 1, and remove relay and fuse block No. 1 from relay and fuse block No. 2.
- Assemble in the reverse order of disassembly.
