USB Power Outlet Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

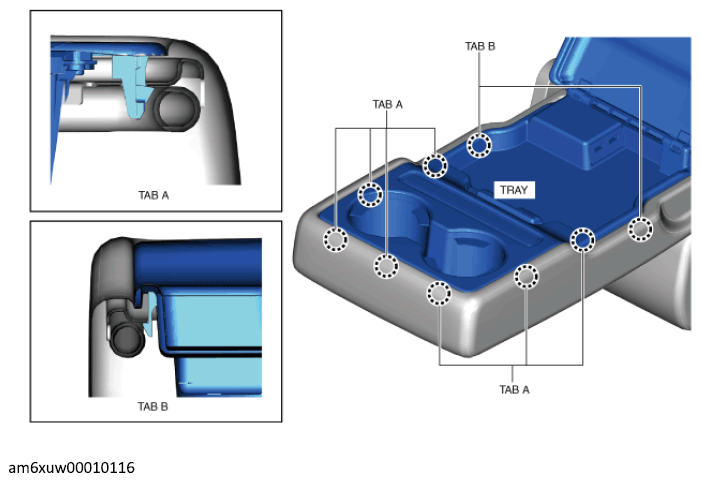

  2. Detach the tray tab from the rear seat center armrest, and remove the tray from the rear seat center armrest.
    G12237554Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.
    G12237555Courtesy of MAZDA MOTORS CORP.
  4. While pressing the USB power outlet tabs in the direction of arrows (1) shown in the figure, press the USB power outlet in the direction of arrow (2) to detach the USB power outlet tabs from the tray.
    G12237556Courtesy of MAZDA MOTORS CORP.
  5. Remove the USB power outlet.
    G12237557Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
