Front Parking Sensor Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Meter hood cover (See METER HOOD REMOVAL/INSTALLATION .)
    2. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
    5. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    6. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)

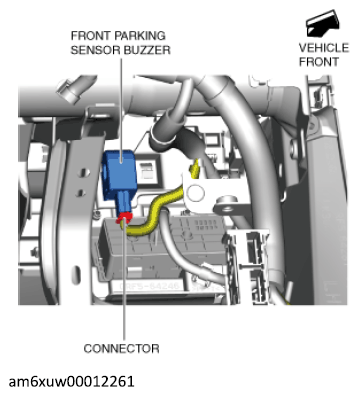

  3. Disconnect the connector.
    G12237590Courtesy of MAZDA MOTORS CORP.

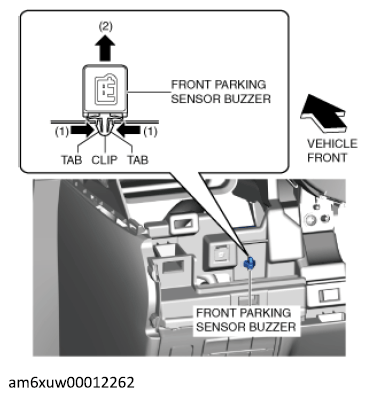

  4. While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the front parking sensor buzzer in the direction of arrow (2) to detach the front parking sensor buzzer tabs from the driver-side lower panel.
    G12237591Courtesy of MAZDA MOTORS CORP.
  5. Remove the front parking sensor buzzer.
  6. Install in the reverse order of removal.
