Indicator Unit Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)

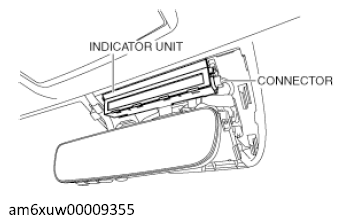

  3. Disconnect the connector.
    G12237625Courtesy of MAZDA MOTORS CORP.

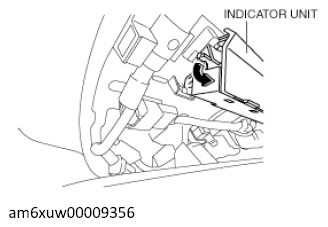

  4. Move the indicator unit in the direction of the arrow shown in the figure and remove it.
    G12237626Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
