Instrument Cluster Disassembly/Assembly
CAUTION:
- If the instrument cluster is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the instrument cluster, perform the procedure on a workbench on clean clothes being careful not to drop it.
NOTE:
- If non-woven fabric is attached to the cover tabs, remove it.
- It is not necessary to attach non-woven fabric to the cover tabs during assembly.

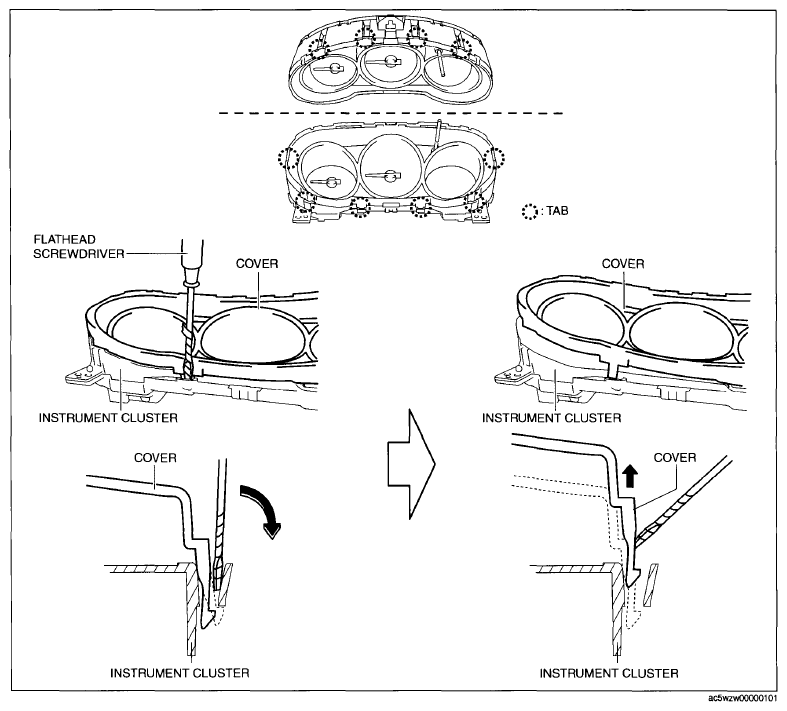

- Move a tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure, lift up the cover while pressing the cover tab, and disengage the cover tab from the instrument cluster.
- Disengage all the cover tabs from the instrument cluster and remove the cover.
- Assemble in the reverse order of disassembly.
