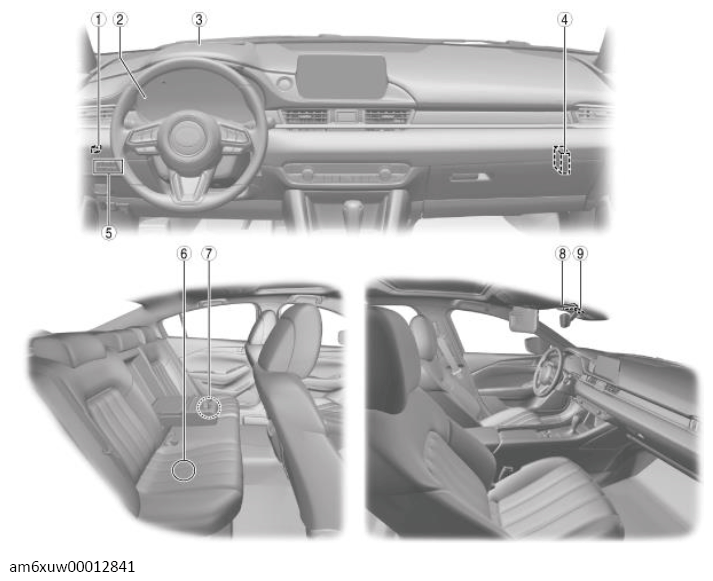

| 1 |
Front parking sensor buzzer
(See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION .)
(See FRONT PARKING SENSOR BUZZER INSPECTION .) |
| 2 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 3 |
Active driving display (with active driving display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
(See ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY .)
(See ACTIVE DRIVING DISPLAY INSPECTION .)
(See ACTIVE DRIVING DISPLAY SHORT-CORD REMOVAL/INSTALLATION .)
(See ACTIVE DRIVING DISPLAY SHORT-CORD INSPECTION .) |
| 4 |
Parking assist unit
(See PARKING ASSIST UNIT REMOVAL/INSTALLATION .)
(See PARKING ASSIST UNIT INSPECTION .) |
| 5 |
Parking sensor switch
(See PARKING SENSOR SWITCH REMOVAL/INSTALLATION .)
(See PARKING SENSOR SWITCH INSPECTION .) |
| 6 |
Fuel gauge sender unit (main)
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD] .)
(See FUEL GAUGE SENDER UNIT INSPECTION [2WD] .) |
| 7 |
Fuel gauge sender unit (sub) |
| 8 |
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION .)
(See INDICATOR UNIT INSPECTION .) |
| 9 |
Indicator unit short-cord
(See INDICATOR UNIT SHORT-CORD REMOVAL/INSTALLATION .)
(See INDICATOR UNIT SHORT-CORD INSPECTION .) |
