Drive-by-wire control (+) signal

NOTE:

The wave pattern is either type A or B depending on the PCM specifications.

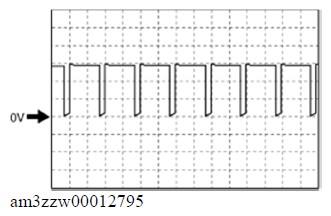

Type A

G11492237

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1CG(+)-1CC(-)

Oscilloscope setting

5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

Idle after warm up

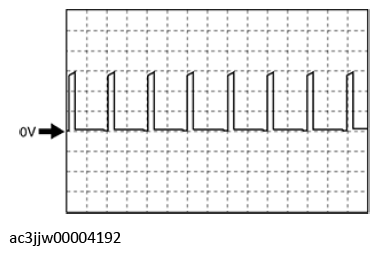

Type B

G13119083

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1CG(+)-1CC(-)

Oscilloscope setting

5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

Idle after warm up
