Not P Position Switch Inspection: Notes

NOTE:
  • The not P position switch is built into the selector lever component.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)

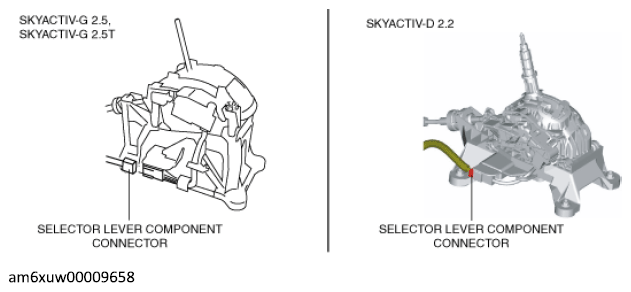

  3. Disconnect the selector lever component connector.
    G12233215Courtesy of MAZDA MOTORS CORP.

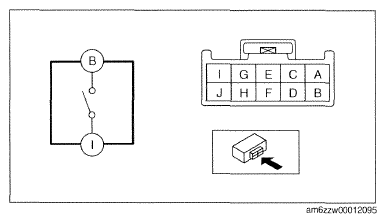

  4. Verify that the continuity between selector lever component terminals B and I.
G09786274Courtesy of MAZDA MOTORS CORP.
