PCM Cover Installation Note

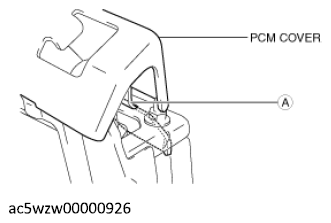

  1. Insert the PCM cover end into area A shown in the figure.
    G12184646Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the two bolts, then completely tighten them.
