Front Console Box Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)

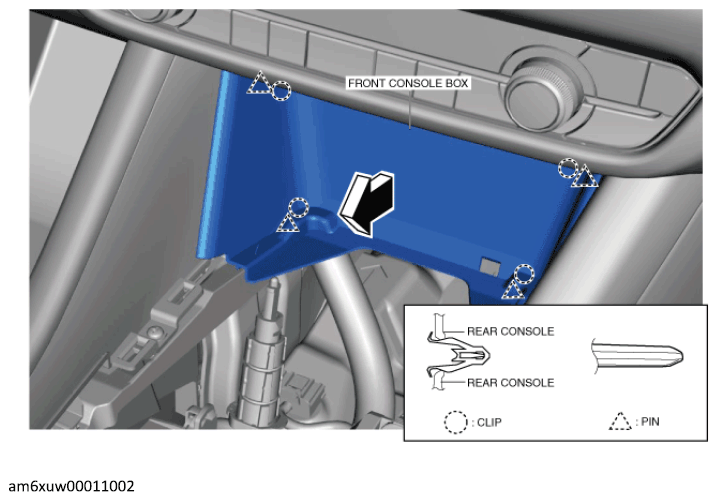

  3. Pull the front console box in the direction of the arrow and remove it while detaching clips and pin.
    G12236416Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
