Intake Air Temperature (IAT) Sensor Inspection: Specification

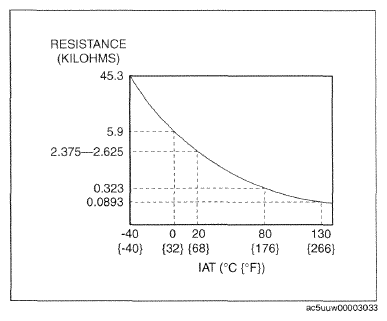

IAT2 (°C {°F}) Resistance (kΩ)
0 {32} Approx. 5.9
20 {68} 2.375-2.625
80{176} Approx. 0.323
130{266} Approx. 0.0893
G09758732Courtesy of MAZDA MOTORS CORP.
