Front Power Window Motor Inspection: Passenger-side
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Remove the front door trim. (Passenger-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front power window motor connector.

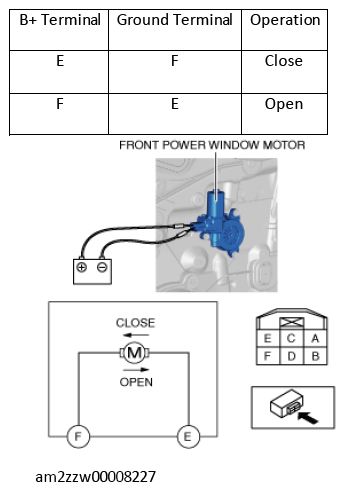

- Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.TERMINAL VOLTAGE DESCRIPTION
B+ Terminal Ground Terminal Operation E F Close F E Open - If the front power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
