Mirror Glass Adjustment

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Power window main switch (Driver-side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    2. Power window subswitch (Passenger-side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
    TERMINAL VOLTAGE DESCRIPTION

    B+ terminal Ground terminal Operation
    C F Up
    F C Down
    I F Left
    F I Right

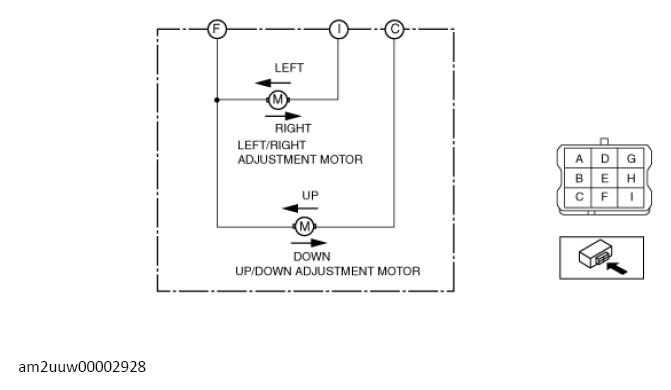

    G13152097Courtesy of MAZDA MOTORS CORP.
