Power Window SUBSWITCH Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

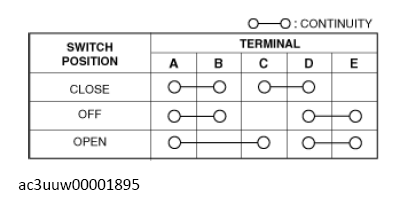

  3. Verify that the continuity is as indicated in the table using a tester.
    G13152121Courtesy of MAZDA MOTORS CORP.

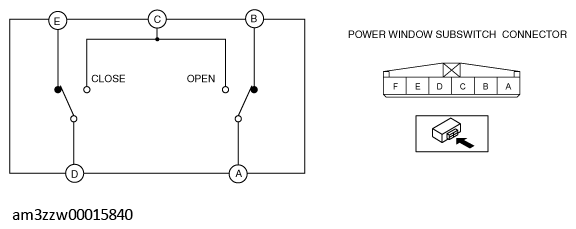

    G11434293Courtesy of MAZDA MOTORS CORP.
