Brake Pipe Installation Note

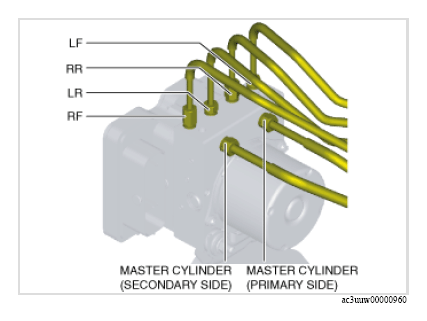

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
G13150390Courtesy of MAZDA MOTORS CORP.
