DSC HU/Cm Removal/Installation: Notes
WARNING:
- If the DSC HU/CM configuration is not completed, it could result in an unexpected accident due to the DSC being inoperative. If the DSC HU/CM is replaced, always use the automatic configuration function so that the DSC operation conditions are correct.
- If the DSC related parts sensor initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing the DSC HU/CM, always perform the DSC related parts sensor initialization procedure to insure proper DSC operation.
CAUTION:
- The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.
NOTE:
- The DSC HU/CM prior to replacement stores the vehicle specification information.
- A new DSC HU/CM does not store any vehicle specification information.
- When the ignition is switched ON (engine off or on) after the DSC HU/CM is replaced, the DSC HU/CM reads the vehicle specification information sent via CAN communication from the instrument cluster and stores it.

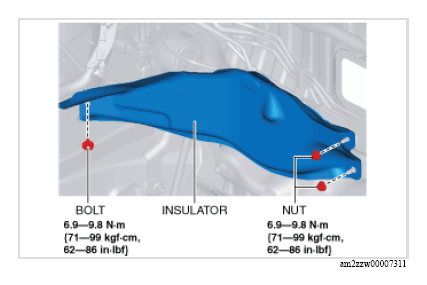

- Remove the insulator.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- If the DSC HU/CM is replaced, perform the auto configuration and the initialization of the sensors for DSC-related parts.
- Switch the ignition ON (engine off or on) and wait for 10 s or more.
- Switch the ignition off and wait for 3 s or more.
- Switch the ignition ON (engine off or on) and wait for 3 s or more for the DSC HU/CM auto configuration to complete.
- Clear the DTC. (See CLEARING DTC [DSC HU/CM] .)
- Switch the ignition off and wait for 3 s or more.
- Switch the ignition ON (engine off or on) and wait for 10 s or more.
- Using the M-MDS, verify that DTCs U2101:00/U2300:52/U2300:54/U2300:55/U2300:56/U2300:64 are not displayed.
- If DTCs U2300:54/U2300:55/U2300:56/U2300:64 are displayed, go to the DTC troubleshooting procedure. (See DTC U2300:54/U2300:55/U2300:56/U2300:64 [DSC HU/CM] .)
- Perform the sensor initialization for the DSC-related parts. (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
- Clear the DTC. (See CLEARING DTC [DSC HU/CM] .)
- Switch the ignition off and wait for 3 s or more.
- Switch the ignition ON (engine off or on) and wait for 10 s or more.
- Using the M-MDS, verify that DTCs C0044:54/C0061:54/C0062:54/C0063:54 are not displayed.
- If DTCs C0044:54/C0061:54/C0062:54/C0063:54 are displayed, go to the DTC troubleshooting procedure. (See DTC C0044:01/C0044:28/C0044:49/C0044:54 [DSC HU/CM] .) (See DTC C0061:28/C0061:54/C0061:64 [DSC HU/CM] .) (See DTC C0062:28/C0062:54/C0062:64 [DSC HU/CM] .) (See DTC C0063:28/C0063:54/C0063:64 [DSC HU/CM] .)

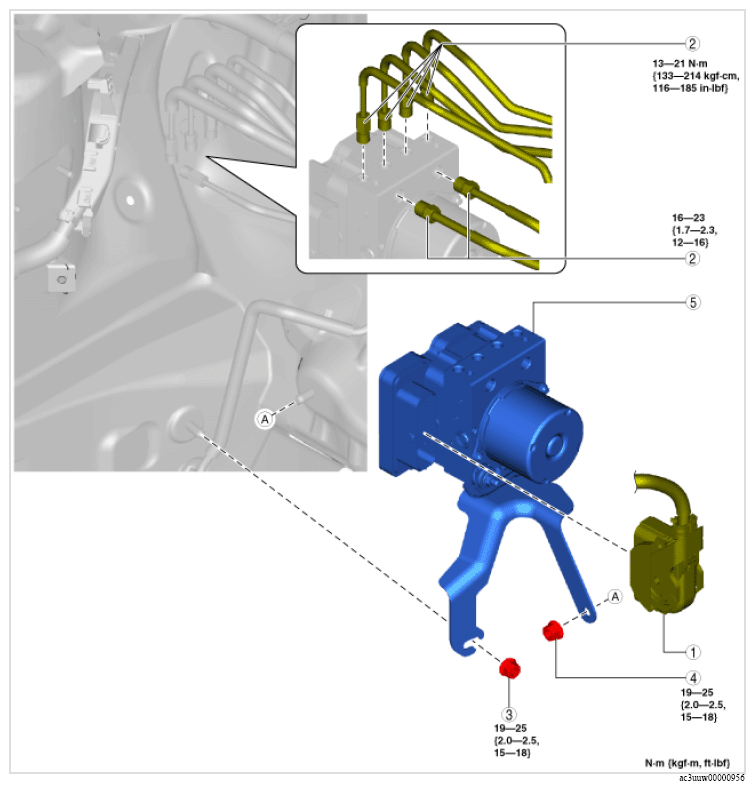

COMPONENT DESCRIPTION1 DSC HU/CM Connector
(See DSC HU/CM Connector Removal Note .)
(See DSC HU/CM Connector Installation Note .)2 Brake pipe
(See Brake Pipe Removal Note .)
(See Brake Pipe Installation Note .)3 Nut 4 Nut 5 DSC HU/CM component
(See DSC HU/CM Component Removal Note .)

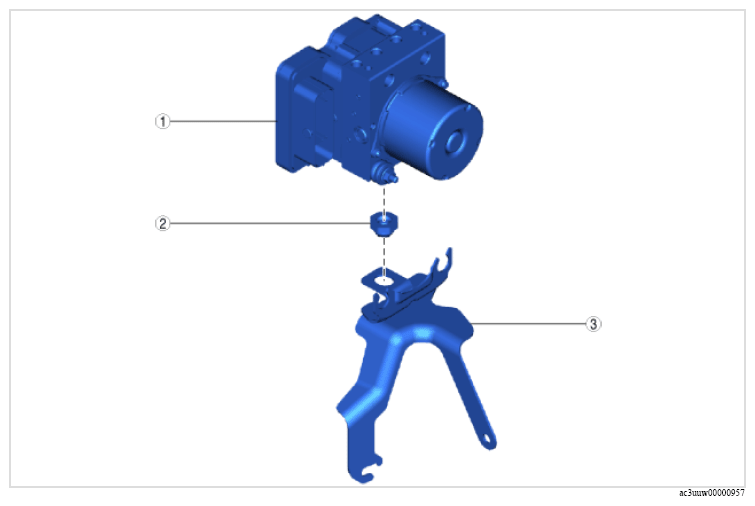

(See DSC HU/CM Component Installation Note .)COMPONENT DESCRIPTION1 DSC HU/CM 2 Mount rubber 3 Bracket
