Front Abs Wheel-Speed Sensor Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

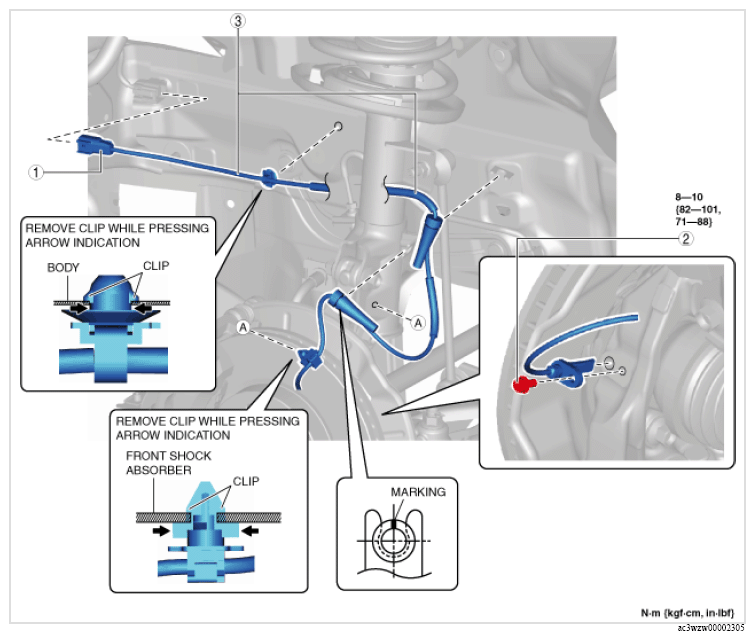

Fig 1: Front ABS Wheel-Speed Sensor Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector (See Connector Disconnection Note .)
2	Bolt
3	Front ABS wheel-speed sensor
