No-load Test

Verify that the battery is fully charged. (See BATTERY INSPECTION .)

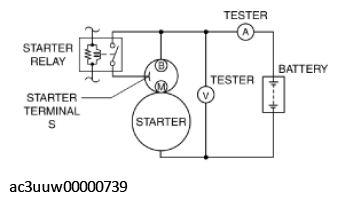

Connect the starter, battery, and a tester as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Operate the starter and verify that it rotates smoothly.
- If the starter does not rotate smoothly, inspect the starter unit.
Measure the voltage and current while the starter is operating.
- If not within specification, replace the starter. (See STARTER REMOVAL/INSTALLATION .)
Starter no-load test voltage

11 V

Starter no-load test current

95 A or less
