Starter Interlock Switch Inspection
CAUTION:
- Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Disconnect the starter interlock switch connector.

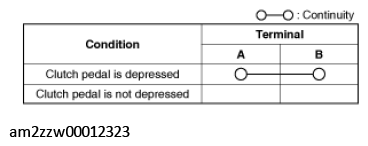

- Verify that the continuity is as indicated in the table using a ohmmeter.
- If the continuity is not as indicated in the table, replace the starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION [C66M-R].)
