With Coolant Control Valve: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  3. Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Start the engine and confirm that there is no oil leakage.
    • If there is oil leakage, repair or replace the applicable part.

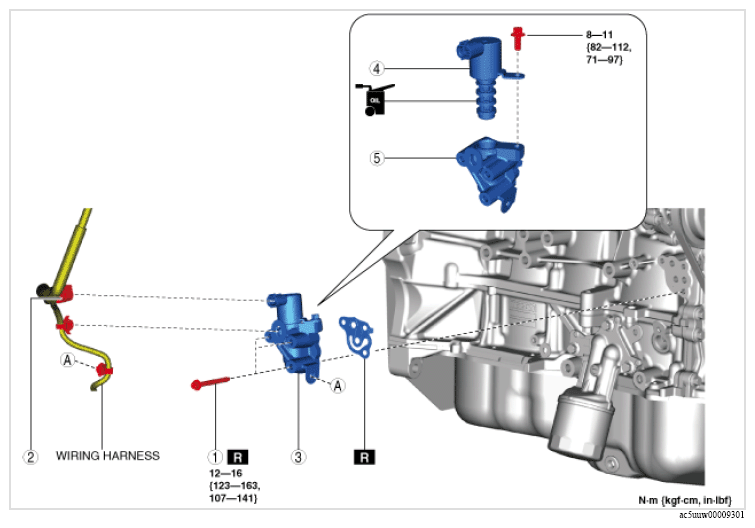

    Fig 1: Engine Oil Solenoid Valve Components With Torque Specification (With Coolant Control Valve)
    G13149297Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bolt
    2 Engine oil solenoid valve connector
    3 Engine oil solenoid valve component
    4 Engine oil solenoid valve
    (See Engine oil solenoid valve removal note .)
    (See Engine oil solenoid valve installation note .)
    5 Spacer
