Without Coolant Control Valve: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.

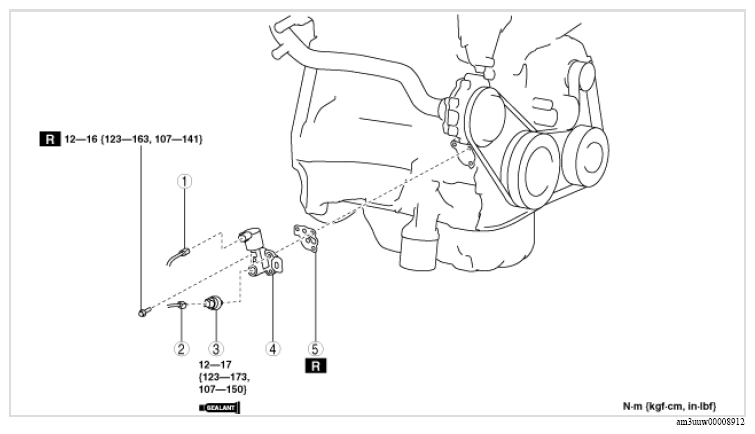

Fig 1: Engine Oil Solenoid Valve Components With Torque Specification (Without Coolant Control Valve)Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Engine oil solenoid valve connector 2 Oil pressure switch connector 3 Oil pressure switch
(See Oil pressure switch installation Note .)4 Engine oil solenoid valve
(See Engine oil solenoid valve removal note .)
(See Engine oil solenoid valve installation note .)5 Gasket
