Oil Cooler Installation Note

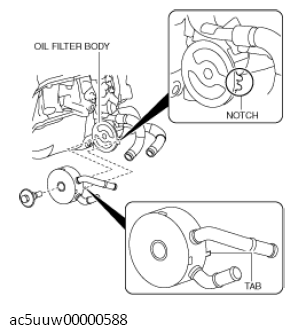

  1. Install the oil cooler with the tab aligned with the notch of the oil filter body.
G11437064Courtesy of MAZDA MOTORS CORP.
