Oil Pan Installation Note

Completely clean and remove any oil, dirt, sealant or other foreign matter that may be adhering to the cylinder block and oil pan.
CAUTION:

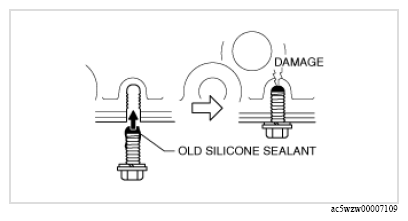

- Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block.
Courtesy of MAZDA MOTORS CORP.
When reusing the oil pan installation bolts, clean any old sealant from the bolts.
CAUTION:
- Apply silicone sealant in a single, unbroken line to prevent oil leakage.
- To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.

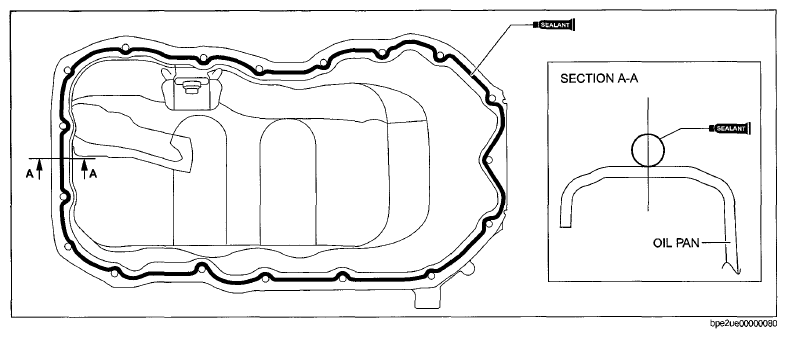

Apply silicone sealant (TB1217D or equivalent) to the oil pan along the inside of the bolt holes as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Thickness

2.0-6.0 mm {0.08-0.23 in}
Install the oil pan to the cylinder block.

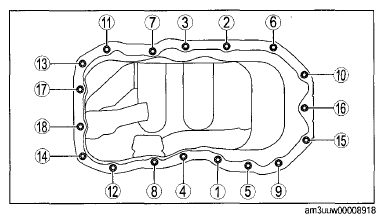

Tighten the bolts in the order shown in the figure.

Fig 1: Oil Pan Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
