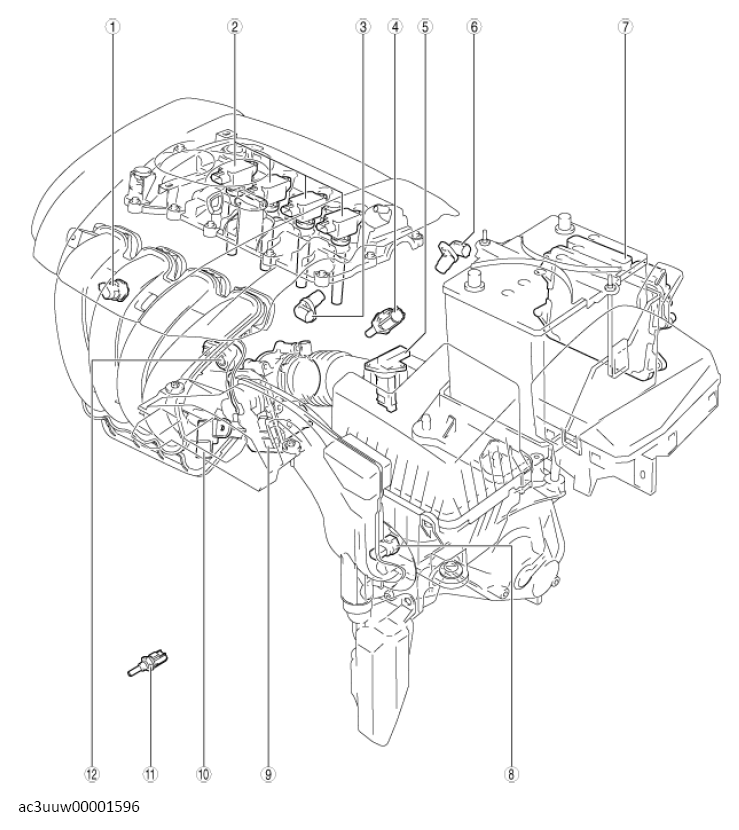

Fuel pressure sensor
(See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL PRESSURE SENSOR INSPECTION .) |
| 2 |
Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION .)
(See ION SENSOR INSPECTION .) |
| 3 |
Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 4 |
ECT sensor No. 1
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 5 |
MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 1 REMOVAL/INSTALLATION .)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 6 |
Exhaust CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .) |
| 7 |
PCM (BARO sensor)
(See PCM REMOVAL/INSTALLATION .)
(See PCM INSPECTION [SKYACTIV-G 2.0) .)
(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See PCM CONFIGURATION (USING AS-BUILT DATA) .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .) |
| 8 |
Neutral switch
(See NEUTRAL SWITCH INSPECTION .) |
| 9 |
TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See THROTTLE POSITION (TP) SENSOR INSPECTION .) |
| 10 |
MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 2 REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .) |
| 11 |
ECT sensor No. 2 (U.S.A. and CANADA)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .) |
| 12 |
KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .) |
