Neutral Switch Inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R].)

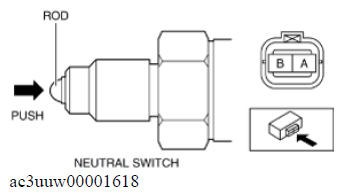

3. Inspect for continuity between neutral switch terminal A and B.

Courtesy of MAZDA MOTORS CORP.

• If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R].)

Specification
