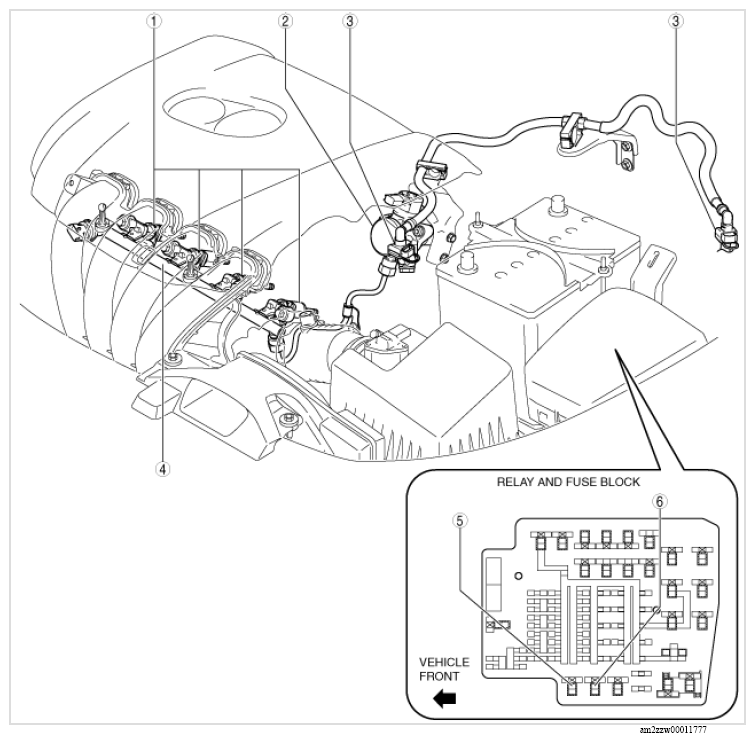

Engine Compartment Side
COMPONENT DESCRIPTION
| 1 | Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION .) (See FUEL INJECTOR INSPECTION .) |
| 2 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .) (See HIGH PRESSURE FUEL PUMP INSPECTION .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .) |
| 4 | Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION .) |
| 5 | Fuel pump relay (See RELAY INSPECTION .) |
| 6 | Fuel injector relay (Without coolant control valve) (See RELAY INSPECTION .) Sub relay (With coolant control valve) (See RELAY INSPECTION .) |
