Transfer Location Index

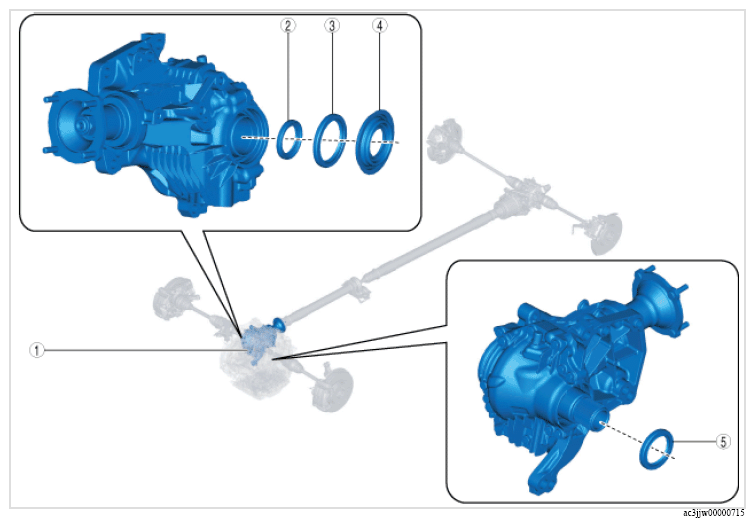

G13150123Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Transfer
(See TRANSFER OIL INSPECTION .)
(See TRANSFER OIL REPLACEMENT .)
(See TRANSFER REMOVAL/INSTALLATIO .)
2 Transfer oil seal (RH) No. 3
(See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
3 Transfer oil seal (RH) No. 2
(See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
4 Transfer oil seal (RH) No. 1
(See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
5 Transfer oil seal (LH)
(See TRANSFER OIL SEAL REPLACEMENT [EW6AX-EL] .)
