Outer Mirror Glass Installation

NOTE:

Courtesy of MAZDA MOTORS CORP.

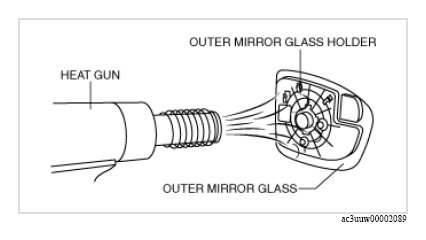

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} degrees using a heat gun.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

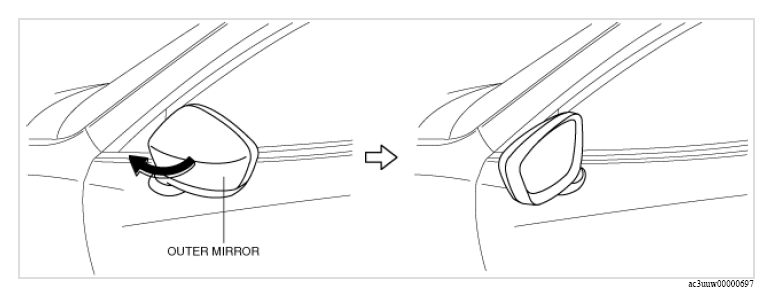

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.

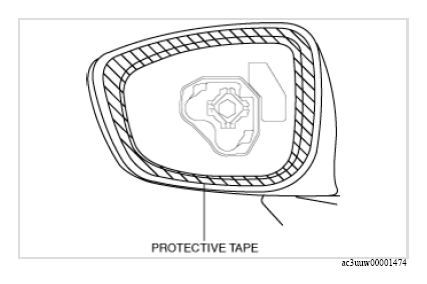

Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

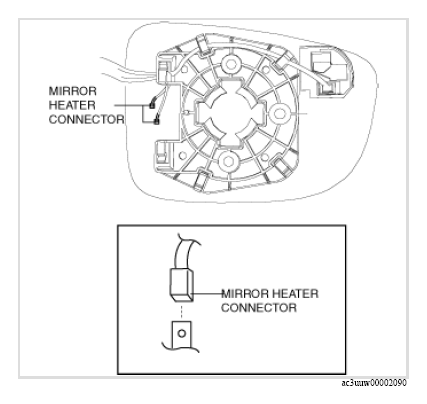

Connect the mirror heater connectors. (with mirror heater)

Courtesy of MAZDA MOTORS CORP.
CAUTION:

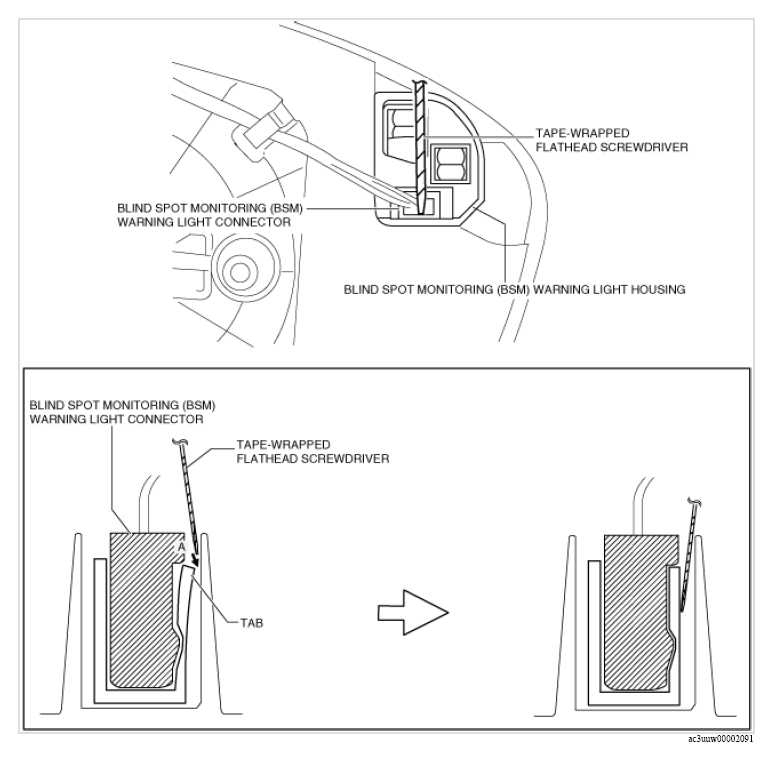

- Lightly pull the blind spot monitoring (BSM) warning light connector and verify that the BSM warning light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector. (with blind spot monitoring (BSM) system)
Connect the blind spot monitoring (BSM) warning light connector (with blind spot monitoring (BSM) system).

Courtesy of MAZDA MOTORS CORP.

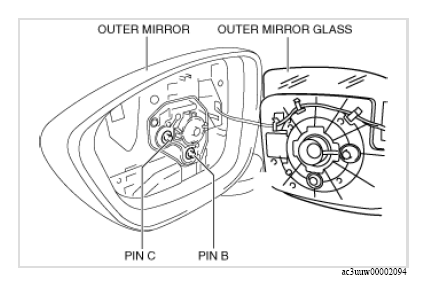

Press in outer mirror pins B and C in the direction of arrows shown in the figure.

Courtesy of MAZDA MOTORS CORP.

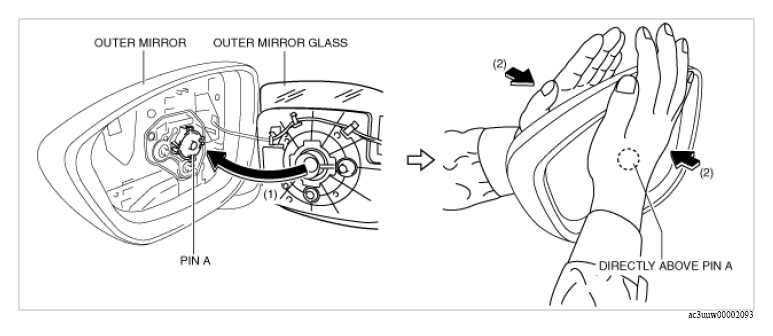

Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrow (2), install pin A.
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.
Courtesy of MAZDA MOTORS CORP.
Install pins B and C in the same way as in Step 6.

Courtesy of MAZDA MOTORS CORP.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
