Quarter Window Glass Removal

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
2. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
3. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
4. Bass-box (with Bose) (See BASS-BOX REMOVAL/INSTALLATION .)
5. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
6. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
7. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
8. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
9. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
10. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
12. Pillar garnish (See PILLAR GARNISH REMOVAL .)

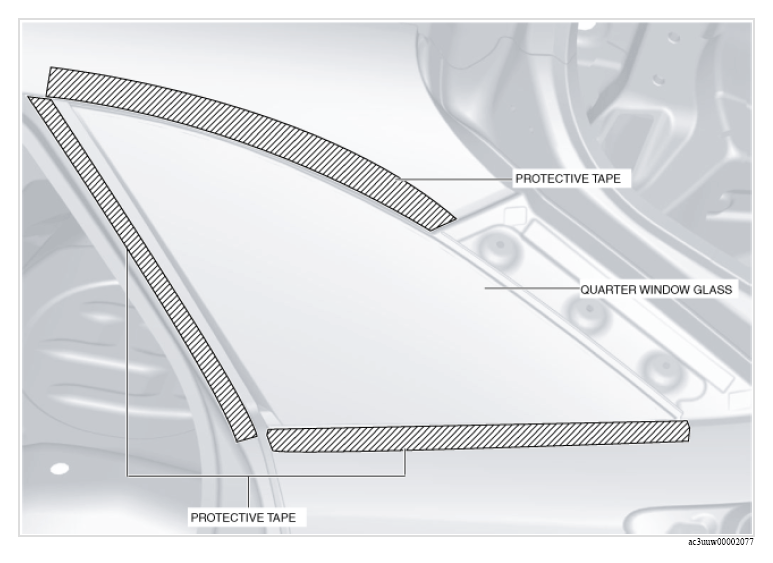

Apply protective tape along the edge of the body and the quarter window glass.

Courtesy of MAZDA MOTORS CORP.
WARNING:
- Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.
Avoiding pins on the inside of the vehicle, insert the piano wire which has been cut to sufficient length.

Courtesy of MAZDA MOTORS CORP.

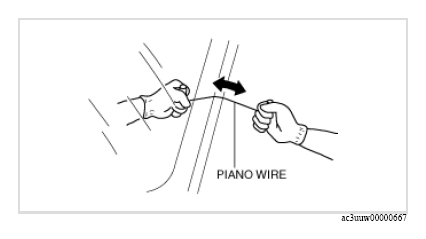

Wind each end of the piano wire around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from breaking due to localized heating.
Secure one end of the piano wire, and while pulling the other end, cut the sealant around the quarter window glass.

Courtesy of MAZDA MOTORS CORP.
Pull the quarter window glass outward and detach the pins from the body.
