Rear Power Window Motor Removal/Installation: Notes

Fully lower the rear door glass.
CAUTION:
- If the rear power window motor is removed with the rear door glass fully closed, the rear door glass may fall off and be damaged.
NOTE:
- If the rear door glass cannot be fully opened by operating the power window subswitch, remove the rear power window motor while inserting your hand through the service hole cover installation hole to support the rear door glass.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the power window subswitch. (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

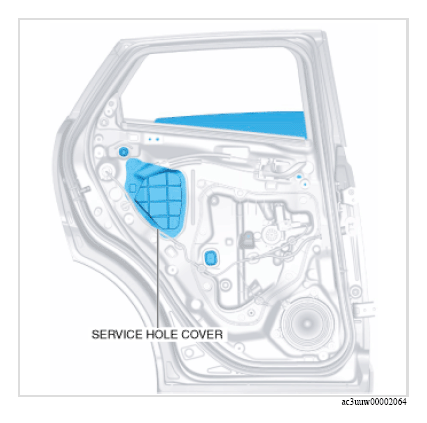

Remove the service hole cover.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

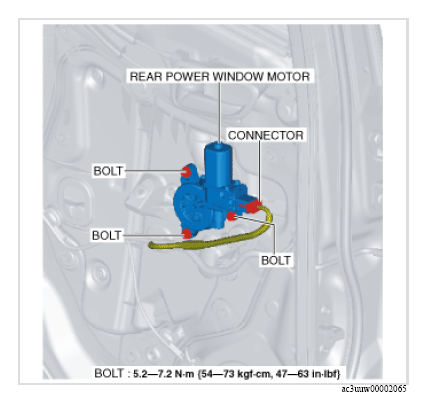

Fig 1: Rear Power Window Motor, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Remove the rear power window motor.
Install in the reverse order of removal. (See REAR POWER WINDOW MOTOR INSTALLATION NOTE .)
