Main Fuse Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

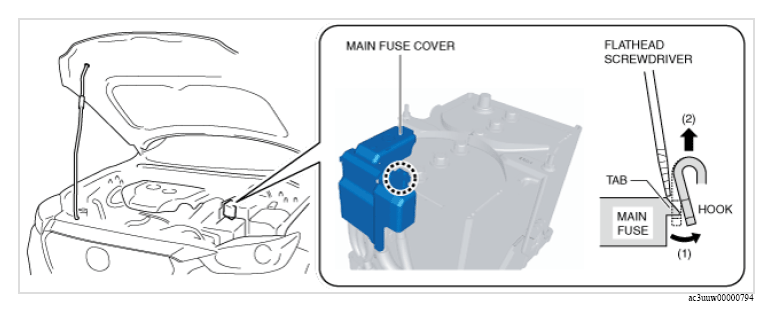

  2. While pressing the main fuse cover hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover hook from the main fuse tab.
    G13153359Courtesy of MAZDA MOTORS CORP.

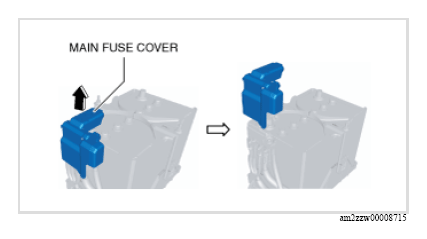

  3. Remove the main fuse cover.
    G13153360Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.

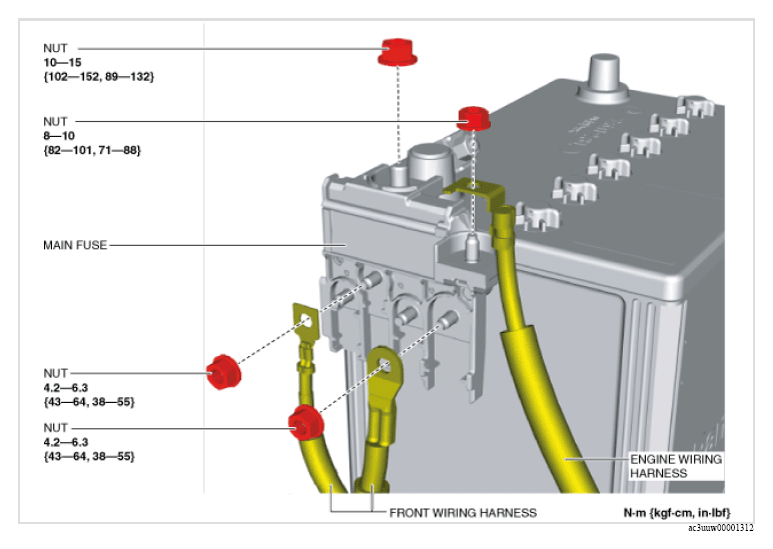

    Fig 1: Main Fuse, Front Wiring Harness, Engine Wiring Harness And Nuts With Torque Specification
    G13153361Courtesy of MAZDA MOTORS CORP.
  5. Remove the main fuse.
  6. Install in the reverse order of removal.
