Battery Box Installation Note

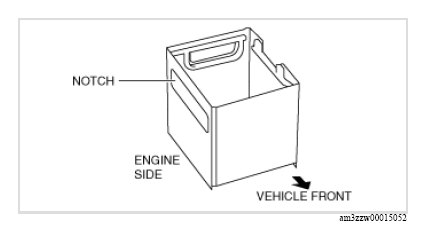

  1. Install the battery box so that the side with the larger notch is pointed at the engine side.
    G13149631Courtesy of MAZDA MOTORS CORP.
