Battery Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

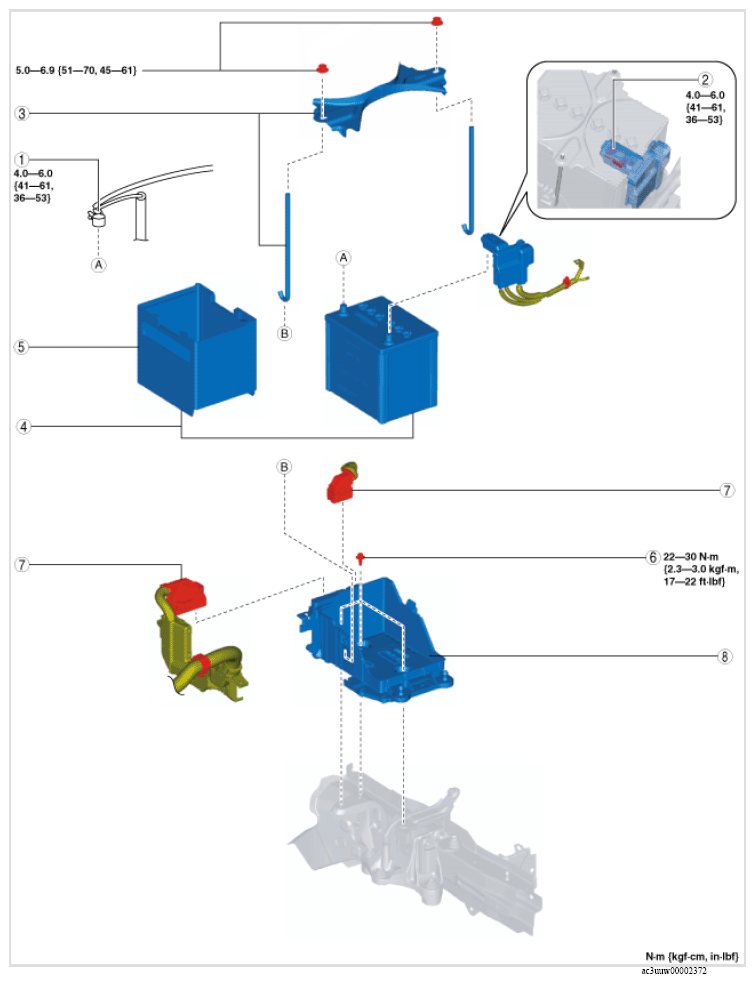

Step 1
COMPONENT DESCRIPTION
| 1 | Negative battery cable (See NEGATIVE BATTERY CABLE DISCONNECTION CONNECTION .) (See Negative Battery Cable Connection Note .) |
| 2 | Positive battery cable |
| 3 | Battery clamp |
| 4 | Battery, battery box |
| 5 | Battery box (See Battery Box Installation Note .) |
| 6 | Battery tray bolt |
| 7 | PCM connector (See Battery Tray and PCM Component Removal Note .) (See Battery Tray and PCM Component Installation Note .) |
| 8 | Battery tray and PCM component (See Battery Tray and PCM Component Removal Note .) (See Battery Tray and PCM Component Installation Note .) |

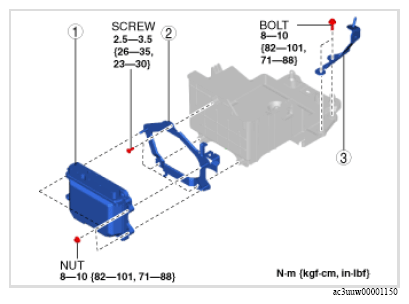

Step 2
COMPONENT DESCRIPTION
| 1 | PCM (See PCM REMOVAL/INSTALLATION .) |
| 2 | Bracket A (See Bracket A Installation Note .) |
| 3 | Bracket B |
