Brush Assembly Note

CAUTION:

Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

Courtesy of MAZDA MOTORS CORP.

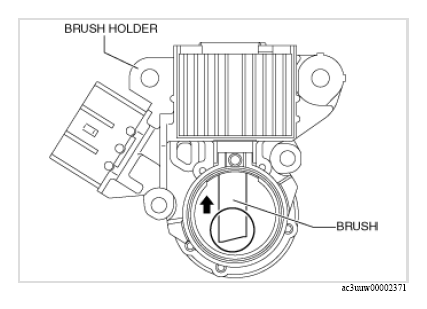

Press the brush into the brush holder with it facing in the direction shown in the figure.

Courtesy of MAZDA MOTORS CORP.

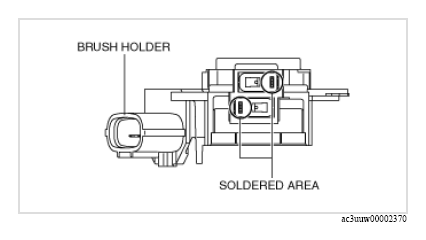

Solder the brush to the brush holder.
