Exhaust System Removal/Installation: AWD: Notes

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
4. Remove the exhaust system insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
5. Install in the reverse order of removal.

Step 1

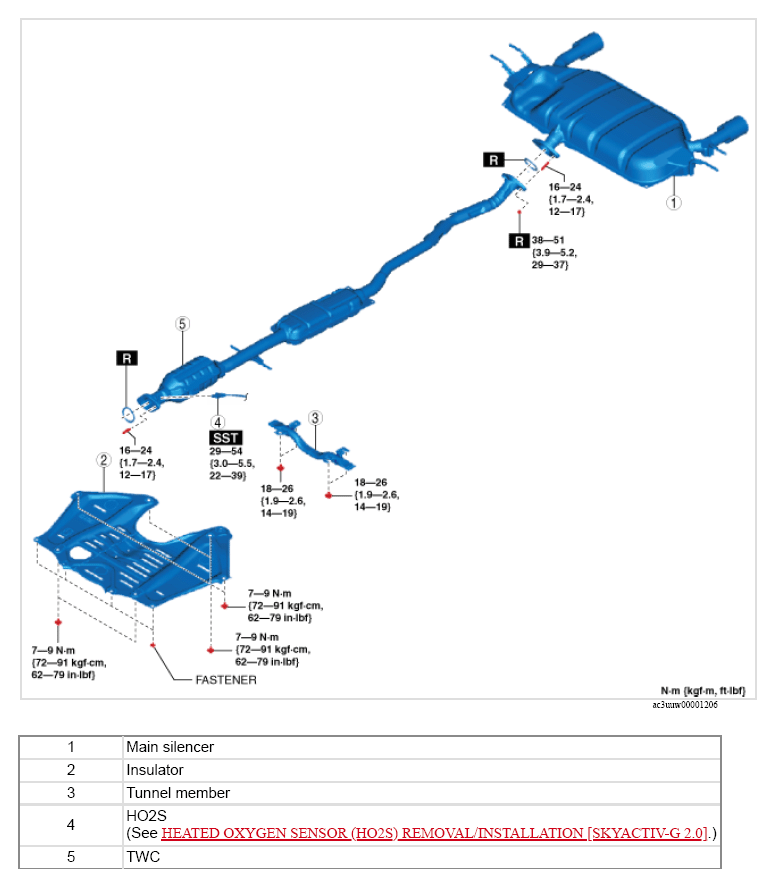

Fig 1: Exhaust System (AWD) Components With Torque Specification (Step 1)

Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System (AWD) Components With Torque Specification (Step 2)

Courtesy of MAZDA MOTORS CORP.
