Back-up Ring Installation Note

  1. Install the back-up ring being, making sure it is installed in the right direction.
    G13149413Courtesy of MAZDA MOTORS CORP.

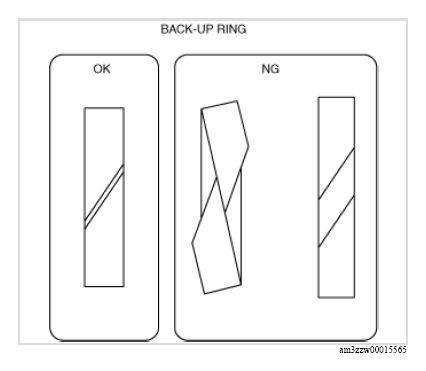

  2. After installing the back-up ring, verify that it is installed correctly.
G13149414Courtesy of MAZDA MOTORS CORP.
