With Coolant Control Valve

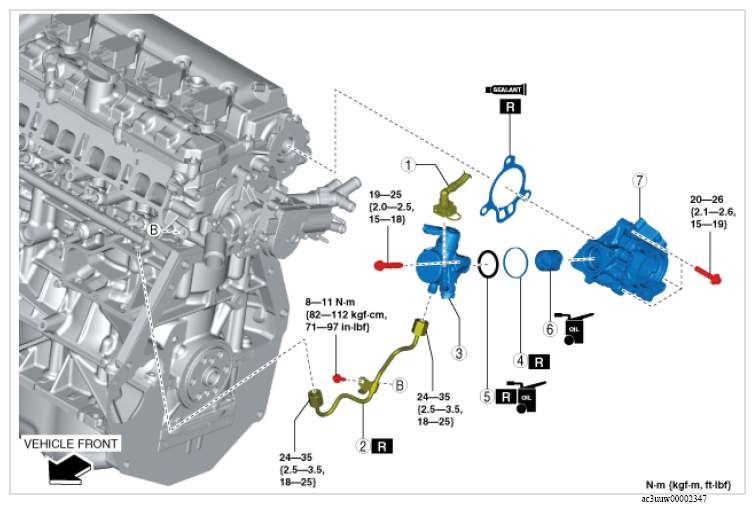

Fig 1: High Pressure Fuel Pump Components With Torque Specification (With Coolant Control Valve)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
2	High pressure fuel pipe (See High Pressure Fuel Pipe Removal Note .)
3	High pressure fuel pump (See High Pressure Fuel Pump Installation Note .)
4	Seal rubber
5	O-ring
6	Tension collar
7	Rear housing (See Rear Housing Removal Note (With coolant control valve) .) (See Rear Housing Installation Note (With coolant control valve) .)
