Power System Location Index (Us)

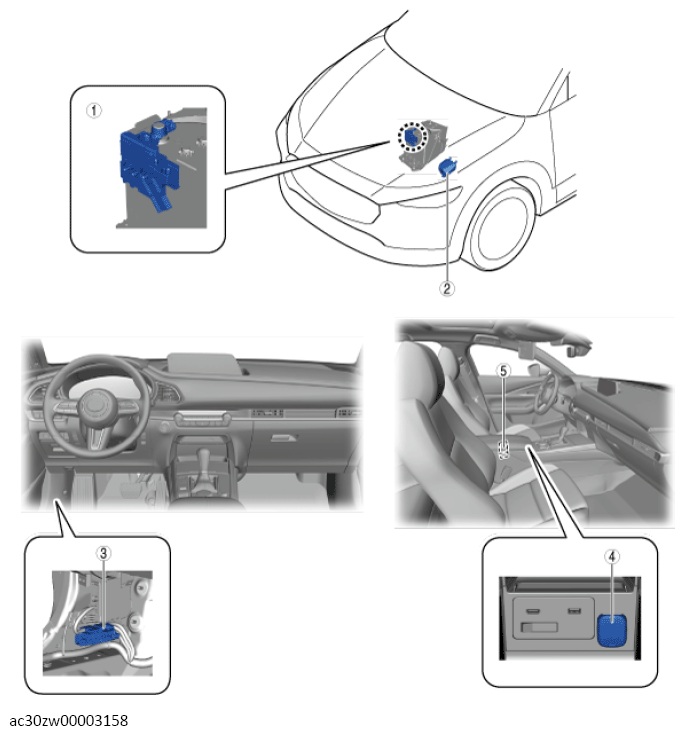

G13750767Courtesy of MAZDA MOTORS CORP.
POWER SYSTEM LOCATION INDEX

1 Main fuse
(See MAIN FUSE REMOVAL/INSTALLATION (US) .)
2 Relay and fuse block
(See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION (US) .)
(See FUSE SERVICE CAUTIONS .)
(See RELAY LOCATION (US) .)
(See RELAY INSPECTION .)
3 Fuse block
(See FUSE BLOCK REMOVAL/INSTALLATION .)
(See FUSE SERVICE CAUTIONS .)
4 Center accessory socket
(See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See CENTER ACCESSORY SOCKET INSPECTION .)
5 Backup power supply
(See BACKUP POWER SUPPLY REMOVAL/INSTALLATION (US) .)
(See BACKUP POWER SUPPLY INSPECTION .)
